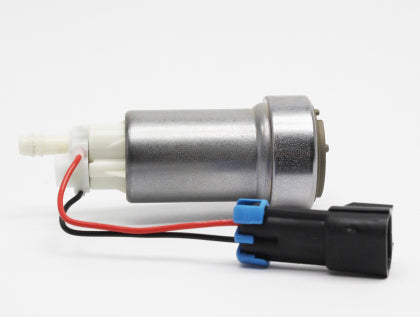

F90000285 Walbro 525lph Hellcat Fuel Pump Ethanol Compatible

F90000285 Flex Fuel Pump for high performance applications.

The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 500hp.

• Highest flow in-tank brushed fuel pump offering from TI Automotive
• E85, pump gas, race gas compatible
• Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
• High pressure relief setting — support supercharger and turbo applications

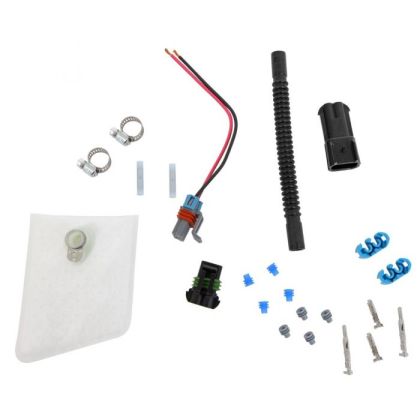

• Flush mountable to existing hanger with installation kit 400-1168

Specifications

• Capable of supporting 900+ at 60PSI, naturally aspirated applications
• Over All Pump Length: 131mm
• Main Housing Diameter: 39mm
• Lower Housing Diameter: 50mm
• Fuel Inlet Diameter: 11mm OD
• Fuel Outlet Diameter: 11mm OD
• Flow Rate: 470lph @ 40psi (120+ gph)
• Test Voltage: 13.5 Volts

This Walbro fuel pump is manufactured by TI Automotive.
